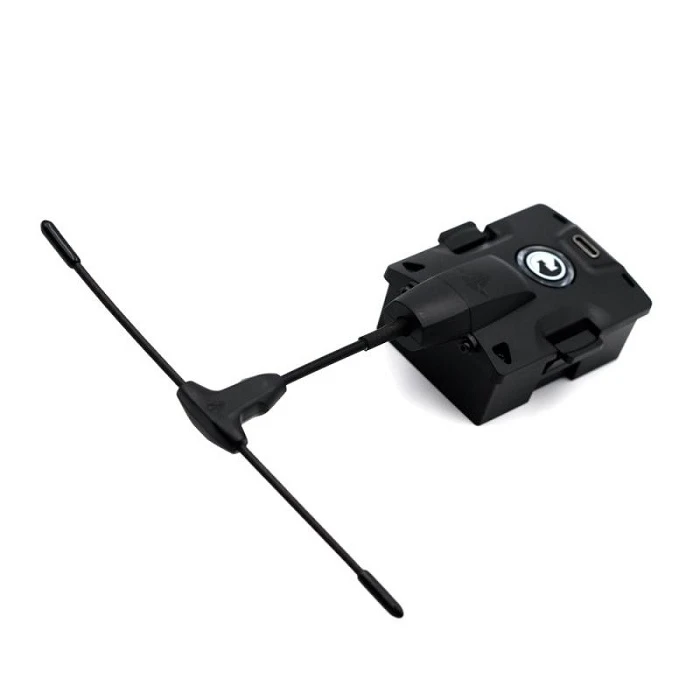

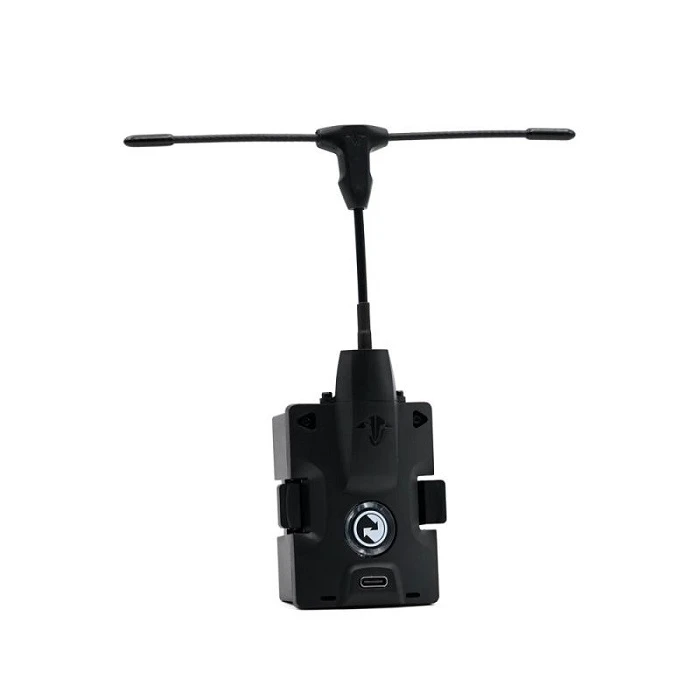

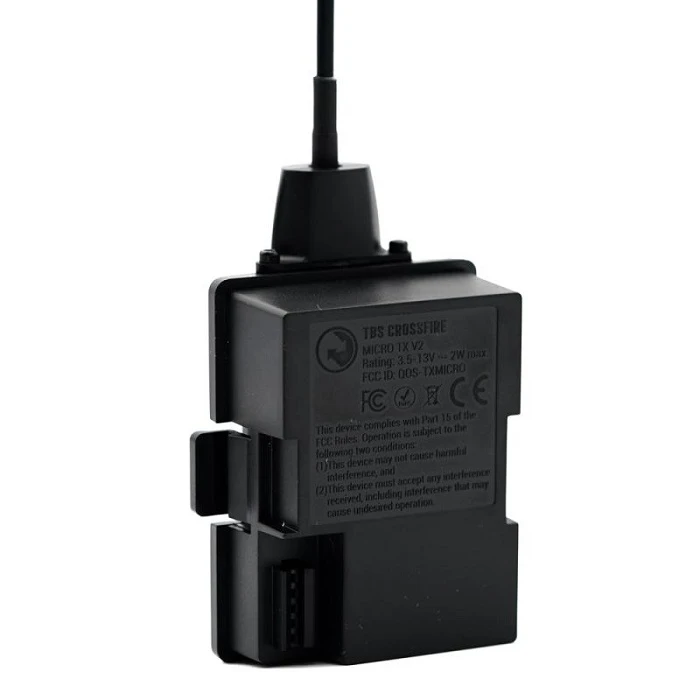

TBS Crossfire 915 Micro TX V2 40km Range

It can be shipped after 4-6 weeks when you place he order.

The Crossfire module boiled down to its pure essence for long range up to 40km, and FPV racers that need ultra low latency.The USB Type-C connector and Simplified PCB Design make Crossfire 915 Micro TX V2 have better performance.

The TBS Crossfire is a long-range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diversity, tiny receivers for FPV quads, the TBS Crossfire contains the most modern technology to provide a superior long range control link.


IT JUST WORKS
Apart from unparalleled range, the thing that we are most proud of on the TBS Crossfire is that it just works. In the past, our question always was “could our R/C link keep up?”. With the TBS Crossfire comes peace of mind. But don’t take our word for it. All leading drone racing organizers require pilots to fly the TBS Crossfire. All top drone racers fly the TBS Crossfire. The furthest long range missions are flown with TBS Crossfire. Now it has become affordable to the masses as a general-purpose radio link!


TELEMETRY / CRSF
As a modern R/C link, it has telemetry built-in. Two-way communication opens up new possibilities. From streaming MAVLink to your smart device (no Mavlink stream support for Crossfire Micro TX!) to updating your firmware, setting your video transmitter channel or adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS, or ArduPilot/Pixhawk platforms.


FEATURES
Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing & frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Super easy binding and configuration via built-in display of your R/C
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
8 or 12ch output via SBUS/PPM/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 25mW to 250mW (local restrictions apply)
Transmitter LED shows link health
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link


SPECIFICATIONS:
Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)
Input Voltage: 3.5 – 13V
Connector: USB-C
Power consumption: 1.1W (@10mW) – 2W (@100mW)
Dimensions: 65 x 48 x 22 mm (JR module size)
Weight: 48g


PACKAGE INCLUDES
1xTBS Crossfire Micro Transmitter (JR module)
1xTBS Crossfire Stock Tx Antenna V2
