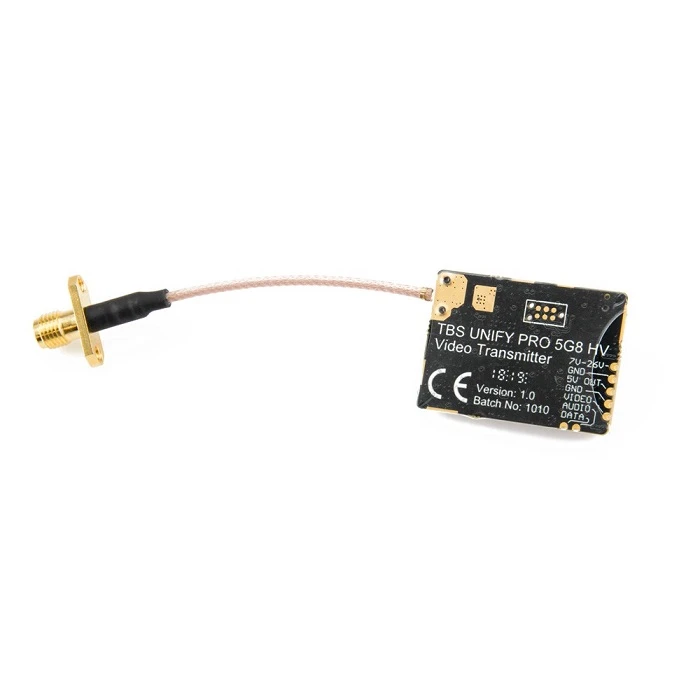

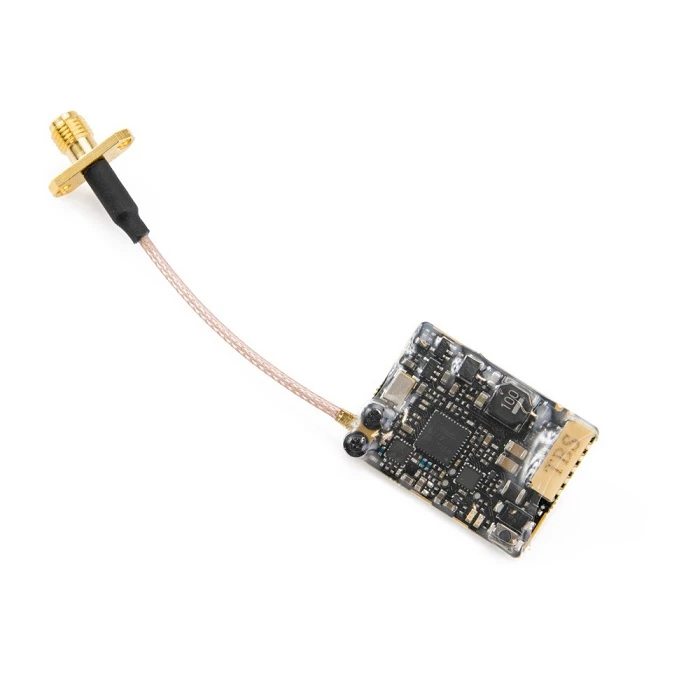

TBS UNIFY PRO 5G8 HV 25-800mw RP-SMA 2-6S VTX Video Transmitter

New and 6S capable version, with 5V output for your FPV camera. Fully SmartAudio compatible – additional features include TBS CleanSwitch and TBS PitMode.Antenna Connector: RP-SMA.

The smallest and most powerful (800mW!) video transmitter the world has ever seen! It’s race-ready with PitMode, a super-clean and interference-free power levels, and connectivity to flight controllers and other means of quickly changing channels. It can be connected directly to up to 6S of battery-juice and provides 5V output for your camera. It will filter the power and make sure you get clean video, even without being connected to a TBS CORE or TBS PowerCube.

With only 7g and a 31x22x6mm form factor, your quad will barely notice it’s there. The 25mW – 800mW adjustable output power allows you to race with friends and penetrate serious concrete with just a few pushes of a button. The 40CH coverage gives you the freedom to fly at any race without having to resort to video transmitter swapping practices.

Features
Smallest, lightest video transmitter on the market
2-6S input power supported
Up to 800mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode – power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without an antenna for hours!
Clean powerup and video switching
CE certified
SmartAudio is now split into Audio = Audio and Data = SmartAudio
Pitmode – Made to Race
Zero interference even while powered up, it’s now a possibility! If you’ve ever repaired a quad during a race, you’ll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW’s), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You’ve got a few meters of range to put your quad through its paces before placing it on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels.

Specifications
Operating Voltage: 2S – 6S
Supply current: up to 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 7g (with SMA, without antenna)
Antenna Connector: RP-SMA Female Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

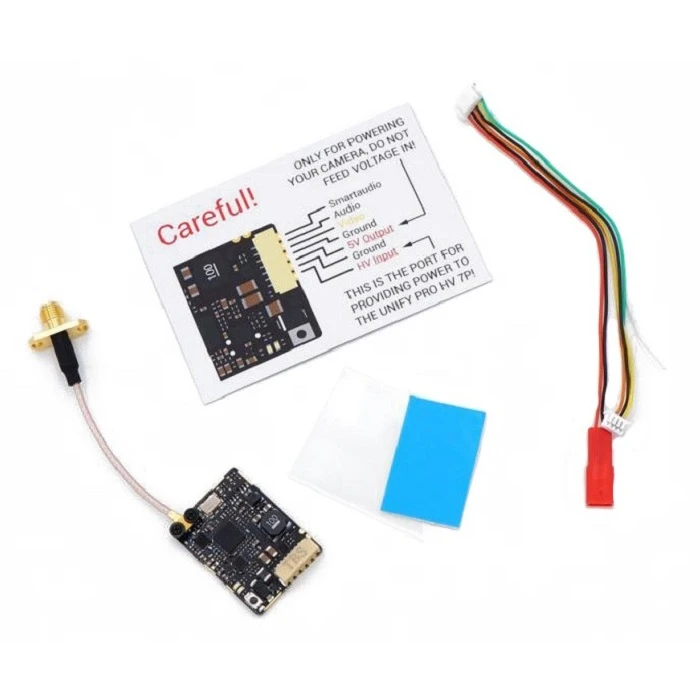

Package Included:
TBS UNIFY PRO 5G8 HV Video transmitter
7Pin Video Transmitter pigtail cable
TBS UNIFY Pro Manual
