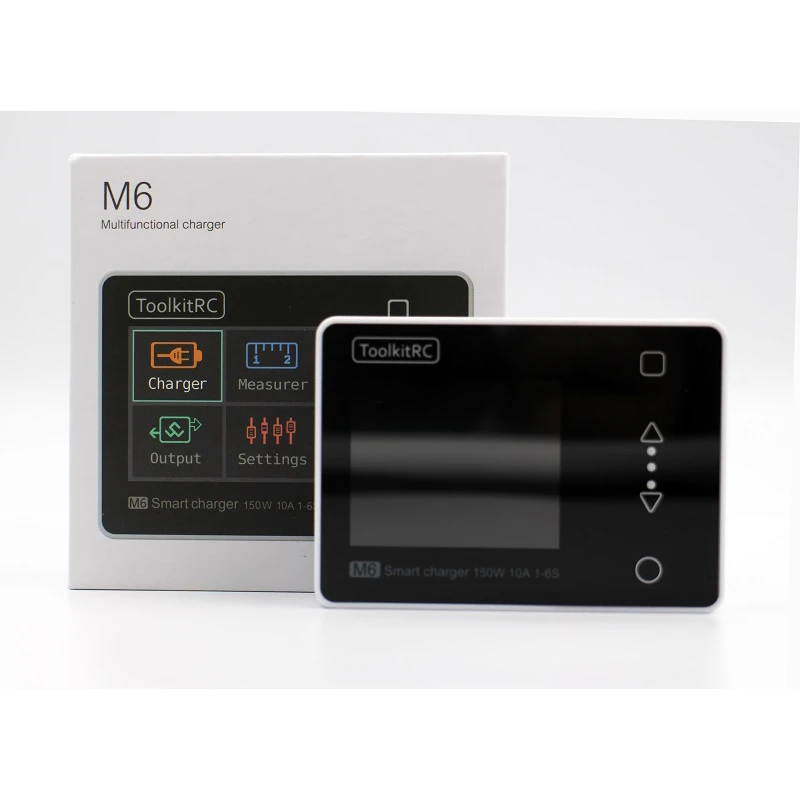

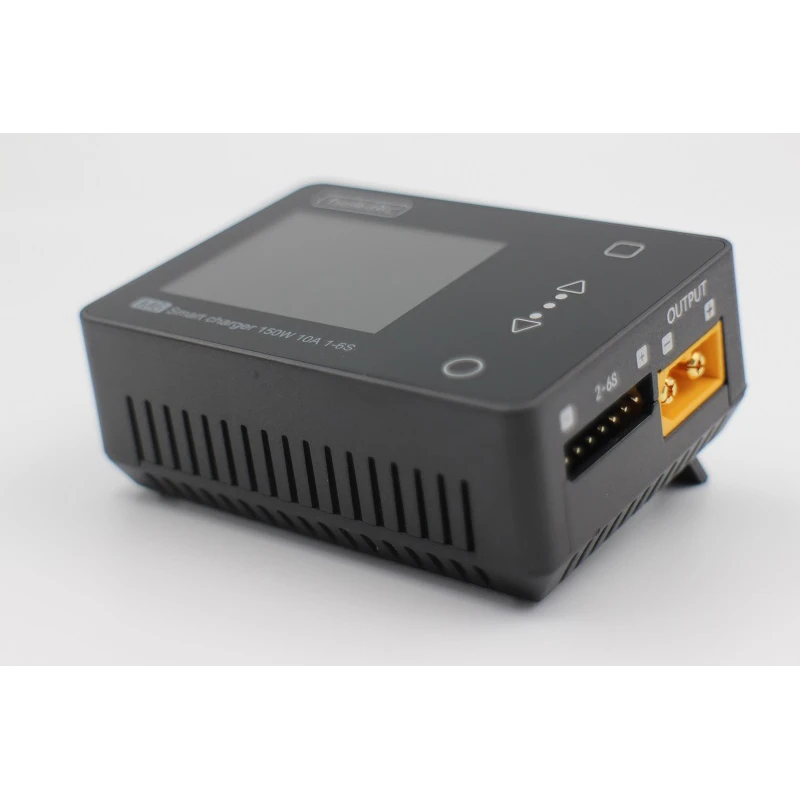

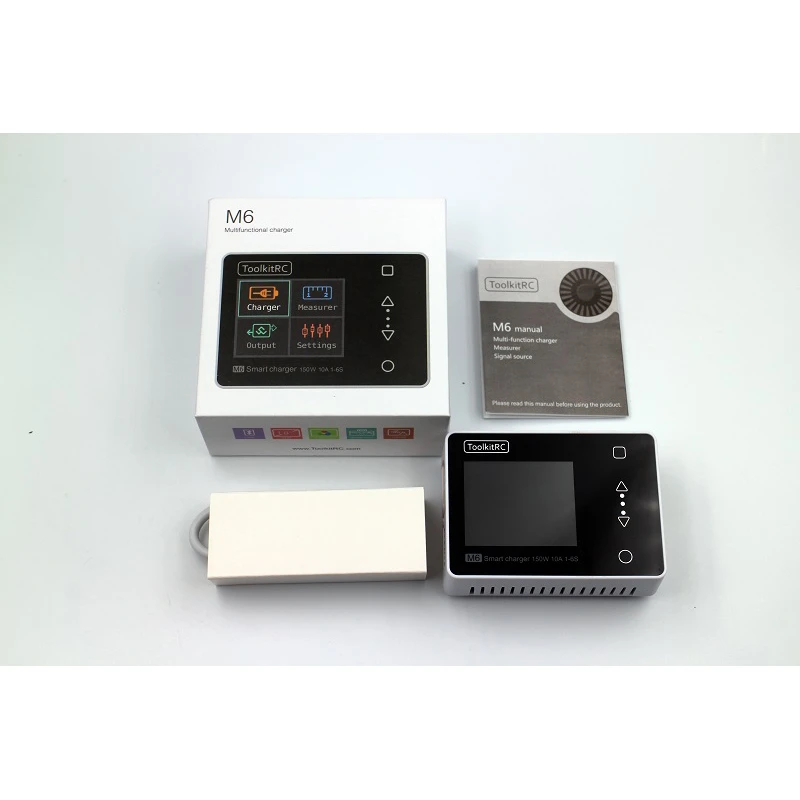

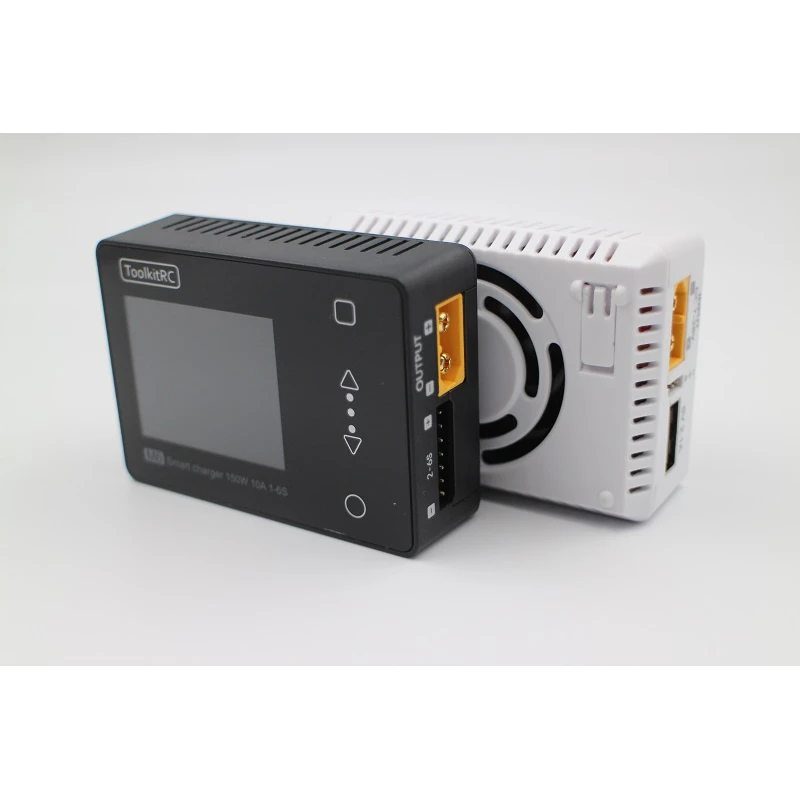

ToolkitRC 150W 10A M6 1-6S Lipo Battery Smart Balance Charger Discharger For RC Quadcopter

The ToolkitRc M6 10A 150W charger is for 1-6S lipo battery.That also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control.

Specification:

Input Voltage: DC 7-28V
Output Voltage: 1-28V
USB Output: 5V 2.1A
Charge Current: 0.1-10A
Discharge Current: 0.1-2A(Recycling mode)
0.1-10A(Internal consumption mode)
Max Charge Capacity: 150W
Max Discharge Capacity: 20W
Supported Batt. Type:LiFe/Lilon/LiPo/LiHv (1-6S)
NiMH/Cd(1-16S)
Pb(1-10S)
Size:68*49*26 mm
Weight: 80g

Feature:

1.The M6 charger come with LCD Display
2.Charge, discharge and balance management support Lipo, LiHV ,LiFe,Lion 1-6S, NiMh 1-16s ,Pb 1-12S battery
3.Can measure battery voltage, battery internal resistance, balance
4.Can measure PWM / PPM / SBUS / DBUS and other signal values accuracy 1s.
5.Can output PWM / PPM / SBUS standard signal, accuracy 1s.
6.Customizable 1-28V constant voltage,1-10A constant current.
7.Compatible with iOS and android mobile device.
8.Charge the drone battery,active and charge.
9.USB 2.1A5.0V Output,for mobile phone devices.
10.Udisk firmware upgarde.(Slave device).
11.Multi-language support.
12.TFT 1.8″Full color LCD.
13.150w 10A Charging capacity.
14.0.1a to 10A Discharge/Storage mode with Energy recycle function (high amp discharge and storage when using a battery as the power source.
15.PWM Signal generating function for servo testing.
