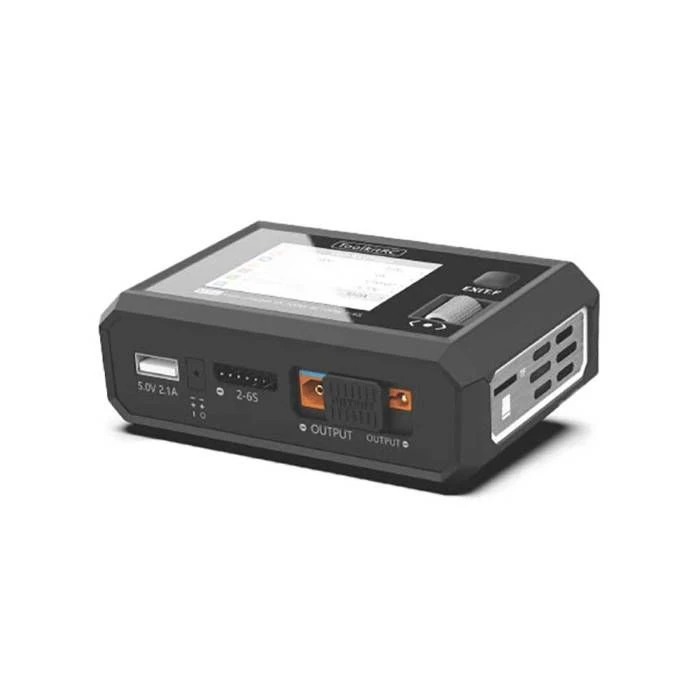

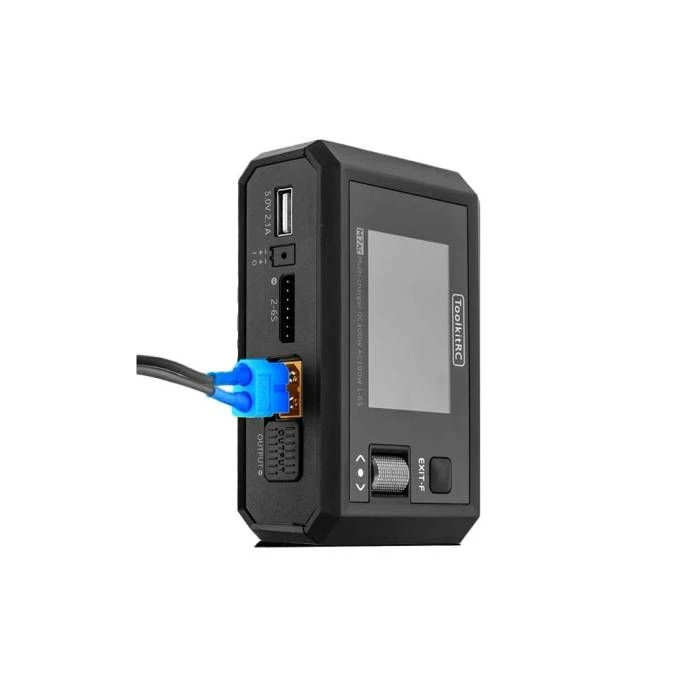

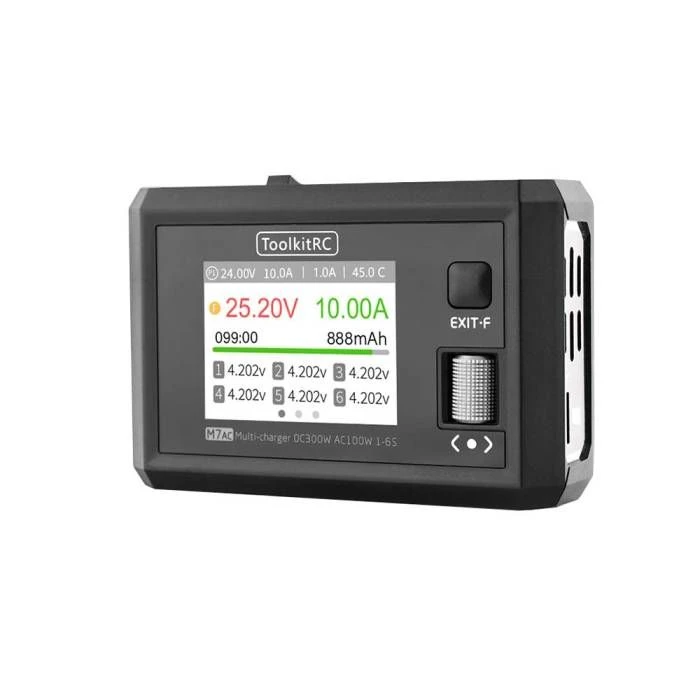

ToolkitRC M7AC 100W AC/300W DC 15A 2-6S Multi-Function AC Smart Balance Charger
Original price was: $74.99.$52.49Current price is: $52.49.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
Features
XT30/XT60 Output
Dual AC/DC Input
Supports 2-6S
Drone charger
Power supply
Signal source
Signal tester
Multimeter
Specifications:
General:
LCD: IPS 2.4 inch LCD 320*240 resolution
Packing Size: 144x125x43mm
Product Size: 112x73x38mm
Packaging Weight: 380g
TF Card: 128MB-16GB
Product Weight: 245g
Charger:
Discharge Power: 300W @MAX 15A Recycle mode / 15W@3A Normal mode
Input Voltage: AC 100-240V MAX 100W 1.5A / DC 7.0-28.0V @MAX 20A
Battery Type: Lipo LiHV LiFe Lion LTO@1-6S / NiMh @1-16S Pb @1-10S
Charging Power: 300W @MAX 15A
Balance Current: 800mA @ 4.2V
USBA: [email protected] or Upgrade
Measure:
Internal Resistance: 0.1 mR-99mR @ 1-6S
SBUS: 880-2200us * 16CH @ 20-100Hz
PPM: 880-2200us * 8CH @ 20-50Hz
PWM: 880-2200us @ 20-400Hz
Voltage: 1.0-5.0V @ 1-6S
ESC: 300W @ 15A
Output
Power Supply: 1.0-28.0V @0.5-15A mode: CC CV

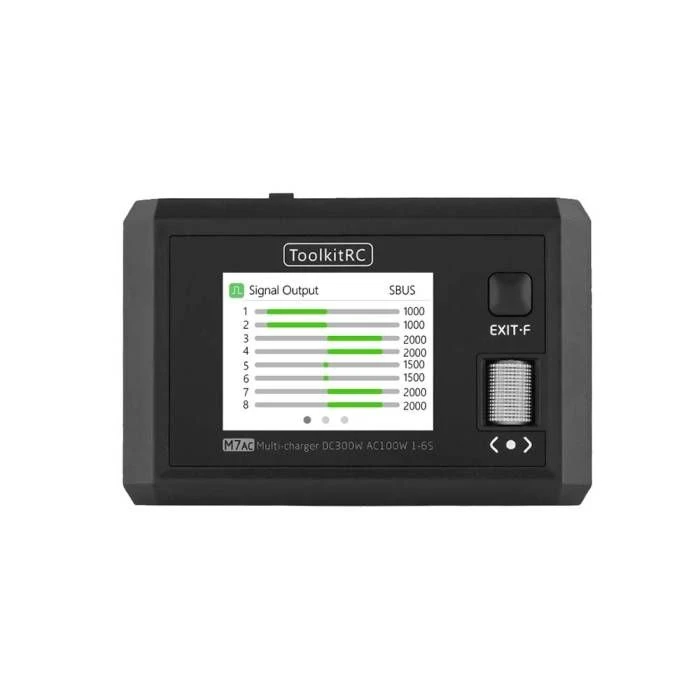

SBUS: 880-2200us * 16CH @ 20-100Hz
PPM: 880-2200us * 8CH @ 20-50Hz
PWM: 500-2500us @ 20-1000Hz
Overcurrent Response: <5ms
Package Includes
1x ToolkitRC M7AC 100W AC/300W DC Charger
